Improved output and documentation options

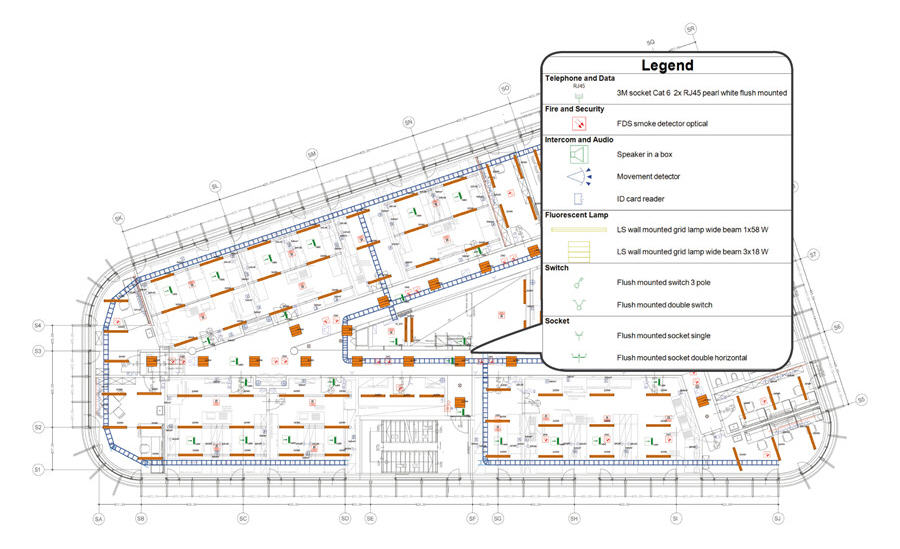

Automatic and configurable legends

Based on the installation plans, DDS-CAD 10 produces automatic legends that are fully configurable and editable. For example, you can deactivate individual objects within the legend, move and rename them, but also edit the general legend's properties such as color, scale, shading, etc.

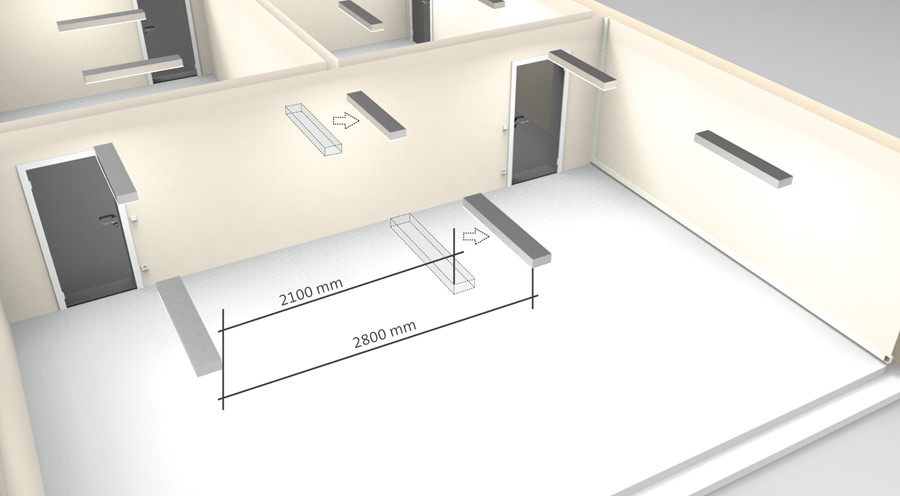

Associative dimensioning

A new dimensioning function characterizes itself above all by a logical relationship between the dimensioned objects and the dimension line. When the dimensioned objects changes its size or position, the dimension line will automatically follow. Additionally, you can freely move dimension text, edit its value and apply custom text formatting.

High quality OpenGL printing

The OpenGL handling has again been improved and further expanded. You can now print each model on any sheet size at any required resolution (e.g. 1200 DPI).
