Heat load calculation

One of the major improvements in DDS-CAD 10 has been made in the field of heat load calculation: DDS-CAD now automatically differentiates different situations on the back side of building components.

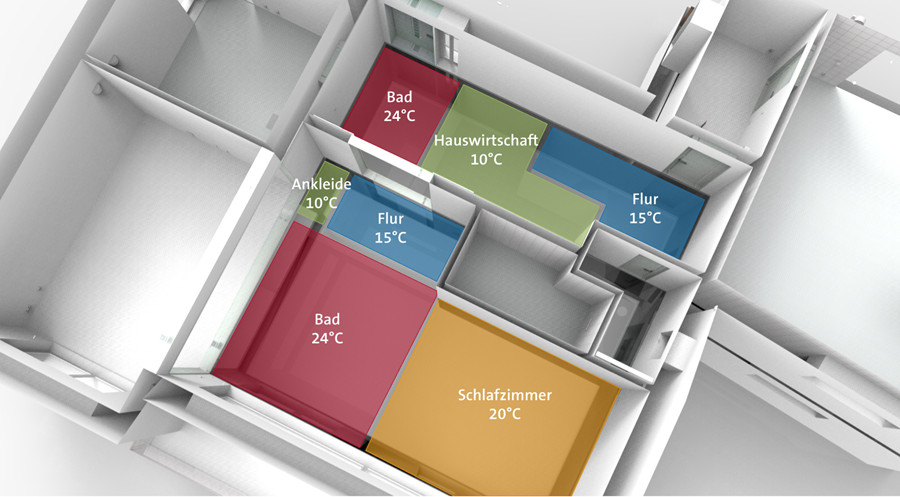

For example, suppose the actual room is situated at the underside of the floor that is divided in different ways. A portion of the room is above a bath, another part touches the unheated utility room, etc. Until version 9, the original floor element has to be replaced manually by several other components.

Version 10 automatically detects these situations and you are able to instantly make a precise heat load calculation.
