Distribution board
|
The distribution board is the central interface between the structures in the building model and the electrical diagram.
The function has a number of levels and the at the same time, it is: External properties (housing) and parameters for installation in the building model. Content of the distribution board, electric circuit and equipment. Agreed-upon information appears in the cells. You can configure the display for each column. Structure of the electrical diagram. The database is evaluated graphically as a circuit diagram, in lists and reports. The function is only available in models with a code number between 500 and 899. Important!
|
Object (tab
Database (tab

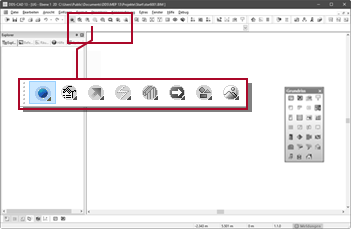

Management interface (tab Insert distribution board into the project
A distribution board is a complex functional unit and must first be created. Afterwards, you can insert it into the model as an object.
Configure distribution board
You develop the internal structure by filling the distribution board with electric circuits, using
Moreover, frequent changes are necessary: You insert new electric circuits, delete those that are unneeded and move the existing ones. In addition, you modify individual electric circuits by inserting new components and changing or deleting existing ones.
In the description, we assume that the distribution board exists, is open and the Circuit List tab is active.
Develop structure
Main and sub distribution boards
|
High voltage systems usually consist of several levels with main and sub distribution boards. When the structure is configured correctly, DDS‑CAD calculates the |
- Begin each distribution board with a supply. (
Relevant circuit layouts ) - Be sure to use realistic parameters when configuring the final circuits. This ensures selection of properly dimensioned equipment and correct calculation of the power consumption.
- Ensure that the current loading is as symmetrical as possible. Unsymmetrical loading often results after modifications because single phase circuits are not distributed uniformly across the line conductors. ( Create symmetrical current loading)
- In the main distribution board, define special electric circuits for supply of the sub distribution boards. ( Relevant circuit layouts)
- Assign each sub distribution board to its own supply circuit in the main distribution board. ( Link sub distribution board with main distribution board)
Subordinate bus bar (Level 2)
|
Often, several final circuits are grouped on a subordinate bus bar. In DDS‑CAD, create a subordinate bus bar as electric circuit Level 2 ( |
General hints
|
When configuring a data distributor, pay attention to the selection of the circuit layout |
, however, are irrelevant and have no function.
General hints
|
|
We use the term low voltage system to refer to several types of systems:
When configuring a distribution board for these systems, pay attention to the selection of the circuit layout |
Reorganize distribution board
Changes in the distribution board cause subordination in the numbering and generate an unsymmetrical current loading. Suitable operations can be used to arrange the numbers and designations, optimize the current loading and correct the dimensioning. In the description, we assume that the distribution board exists, is open and the Circuit List tab is active.
You can block changes of the name or number of circuits or components. This prevents undesired changes for these circuits due to a reorganization.
If more than one row in the circuit list is highlighted, you can start important operations for circuits of interest via the context menu.
-
Mark all cells of interest.
More
- Press and hold
- Click
after each other on the entries of interest.
- Click on the first entry of interest.
- Press and hold [Shift]
- Click on the last entry of interest or use [
] respectively [
].
- Click on the first entry.
- Press and hold [Shift]
- Click on the last entry, or use
- Press and hold
- Click
on the column. The context menu displays relevant functions in dependence on the column. -
Select the desired function.
1 2/3 Connected Circuit Device Comp. 1 Comp. 2 Terminal Cable Comp. 3 Comp. 4 Comp. 5 Text No function No function
The function Circuit tools... reorganizes the distribution board into different areas in accordance with the selected setting. The function distinguishes between three categories and provides numerous operations for this.
Workflow
- Click Circuit tools.... The dialog appears.
- Select the desired category:
Circuits Comp.group Cables -
Select the desired operation at
What kind of editing/settings.
Depending on the selection, functions and fields for further configuration are shown. -
Define the effective area of the operation in
Range. -
Click OK. The operation is finished.
