– Edit pipe systemPresentation

Example

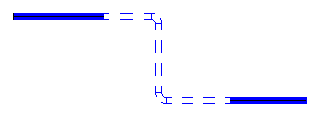

Suppose you want to represent a segment of an existing pipe system as hidden or dashed.

Required conditions

The function requires that you know the direction of the pipe system. With the option Drawing direction (Arrows) you can choose to turn on or off the direction indicator.

Option is active Option is not active

Select: View Drawing direction (Arrows)

Workflow

  1. Select: Vector edit menu Split a pipe
    The cursor appears as a crosshair. The information line shows: [Click Left] at segment=Position to insert
  2. Point to the position for the split. The pipe appears as a marked object. DDScad displays the information about the pipe and the current position.
  3. Click . The dialog appears: Pipe Start
  4. Activate the tab: Display Properties

  5. Check the settings.

    Setting Effect
    Normal
    Stippled
    Hidden

    The setting configures the representation Stippled. You can define three different lengths line segments (≠0), following the same distance to each other.

  6. Click OK. The adjustments apply starting from the selected position in the drawing direction of the pipe system.
