Electrical - KNX

Interaction between DDS-CAD and ETS

Until version 7.3, no interaction was possible between DDS-CAD and ETS. DDS-CAD 8 and ETS 3 can now exchange their data with each other, resulting in the outcome of an integrated planning process. Note to ETS 4...

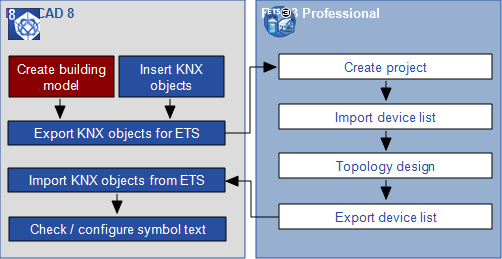

For more information regarding the exchange process, click left mouse button on the respective step in the image.

Attention!
For the exchange of data you need additional ETS macros (tools that are not included in a default installation for ETS. For more information, visit the website of the developer).

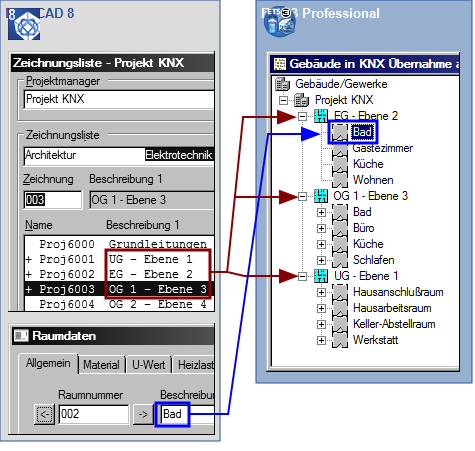

To export projects to ETS a building structure is required. The description of the floors is directly retrieved from project menu and the room descriptions are extracted from the building model. For exchanging data with ETS, only rooms contours are required. Doors, windows, roofs and other building elements are irrelevant in this case.
