Electrical - KNX

Until version 7.3, no interaction was possible between DDS-CAD and ETS(Engineering Tool Software ™, a program for planning, commissioning and managing KNX systems, see Hompage). DDS-CAD 8 and ETS 3 can now exchange their data with each other, resulting in the outcome of an integrated planning process. Note to ETS 4... The interface within DDS-CAD has been prepared. Our partner, IT GMBH, is working on the release of the interface for ETS 4. The principle of the data exchange will remain the same between both tools.

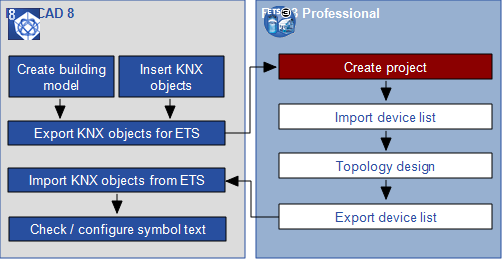

For more information regarding the exchange process, click left mouse button on the respective step in the image.

Attention!
For the exchange of data you need additional ETS macros (tools that are not included in a default installation for ETS. For more information, visit the website of the developer).

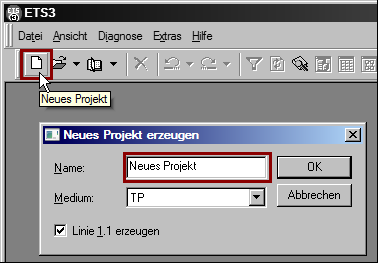

Start ETS, create a new project and enter the project name. After confirming with OK the work surface for the new project opens in ETS.

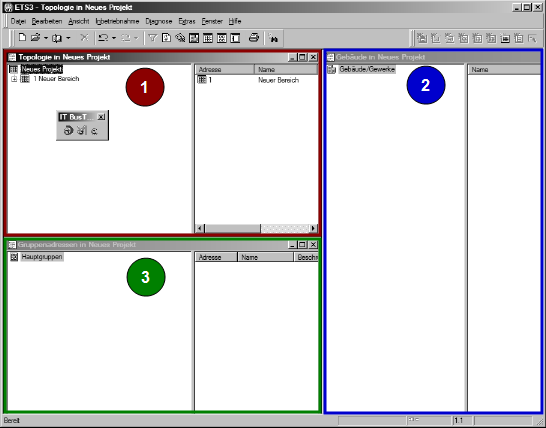

• Topology (1)
• Building (2)
• Group addresses (3)
