Visualization in 3D and rendered model
|

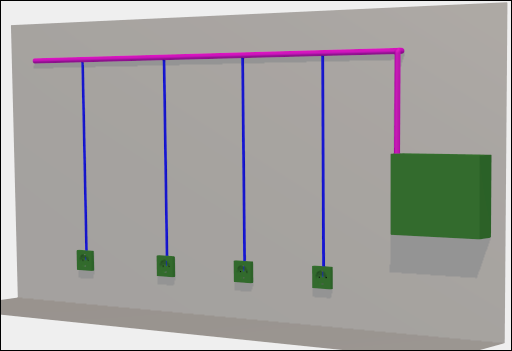

Untill version 7.3 electrical cables were not visibly rendered. Version 8 displays these objects three-dimensionally. Single cables are visualized in their correct dimensions. The thickness of the cable trunk is calculated from the sum of the cables it contains. It currently does not divide it into segments of different thickness, for this additional development is planned.
|
