Polysun Inside 5.9
With DDS-CAD 8 you receive an update of the calculation module Polysun Inside
to version 5.9. You have the following options:
- New calculation report (international, German/English)
- Horizon line and path of the sun
- Take into account own consumption
- Number of modules editable
- Connection variants of inverters can be copied
- Reactive power (
) as a criteria for inverter selection
- Main voltage (U) as criteria for inverter selection
|

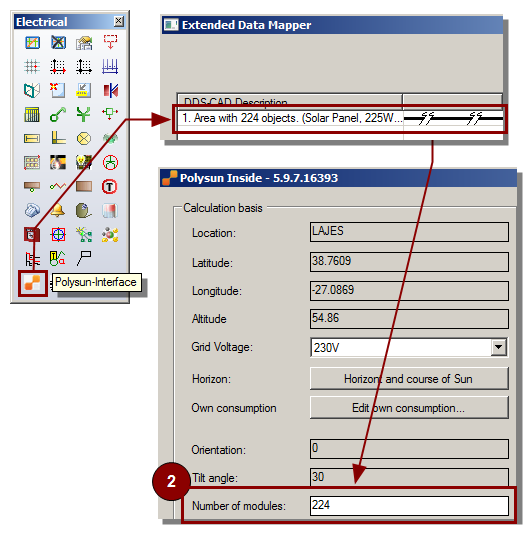

In the previous version, the number of modules taken from the DDS-CAD model were not editable. That is, for a realistic result the module field in DDS-CAD (1) had to be designed in such a way as to be considered in the yield calculation (2). In the new version you can edit the number of modules in the yield calculation dialog. You can combine, for example, two module field (from DDS-CAD) and calculate it as a single field in Polysun Inside.
|
