Polysun Inside 5.9
With DDS-CAD 8 you receive an update of the calculation module Polysun Inside
to version 5.9. You have the following options:
- New calculation report (international, English/German)
- Horizon line and path of the sun
- Take into account own consumption
- Number of modules editable
- Connection variants of inverters can be copied
- Reactive power (
) as a criteria for inverter selection
- Main voltage (U) as criteria for inverter selection
In the inverter selection you can have Polysun Inside calculate and propose possible inverter combination or define them manually. Now it is also possible to copy and reproduce a configured inverter from the calculation (in the previous version...).
Attention!
This operation creates a difference between the calculated number of modules in Polysun Inside and the number of modules that have actually been planned in the DDS-CAD model. More information can be found in Polysun Inside and DDS-CAD. Correct the number of modules in the DDS-CAD model!
Instruction

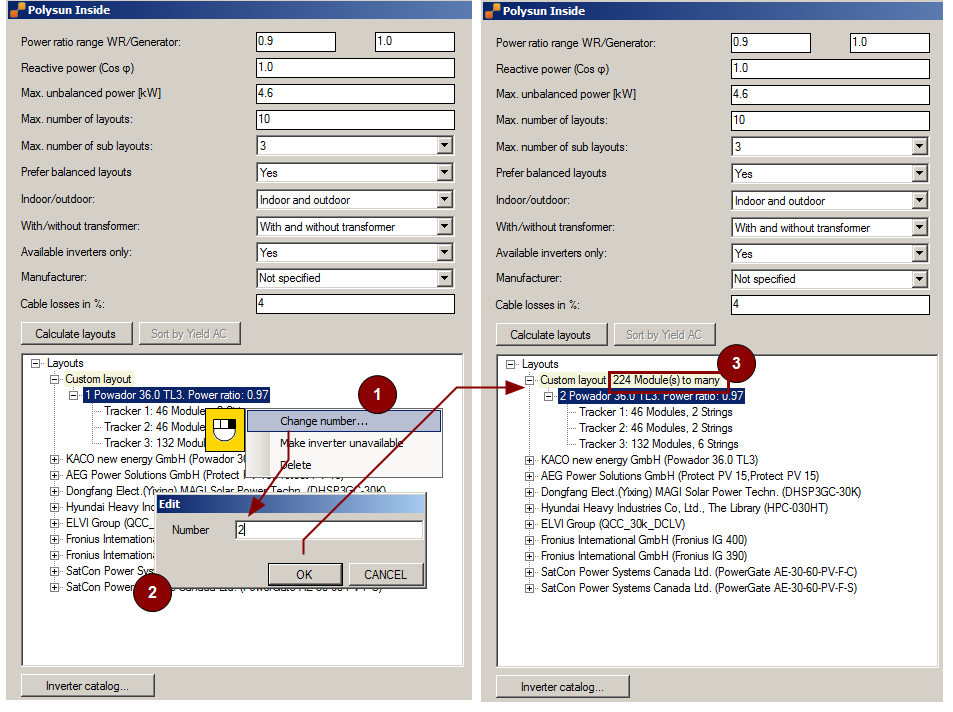

- Click
on the inverter to be copied (1). The context menu appears. - Select EditEdit". The dialog appears.
- Enter the number (2).
- Click OK. The list of connection variants emphasizes the difference from the original plan (3). For more information see the design details and the DDS-CAD interface to Polysun Inside.
