Polysun Inside 5.9
With DDS-CAD 8 you receive an update of the calculation module Polysun Inside
to version 5.9. You have the following options:
- New calculation report (international, German/English)
- Horizon line and path of the sun
- Take into account own consumption
- Number of modules editable
- Connection variants of inverters can be copied
- Reactive power (
) as a criteria for inverter selection
- Main voltage (U) as criteria for inverter selection

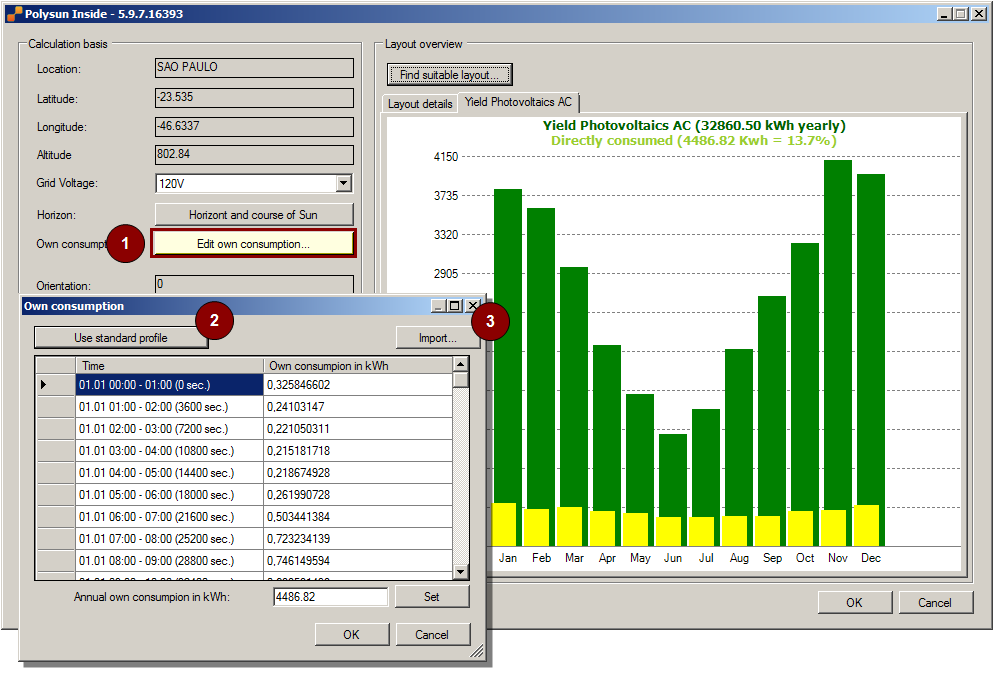

With the new version of Polysun Inside you can take into account the own consumption in the yield calculation (1). It is represented together with the estimated AC yield and also included in the report files. The consumption profile of the connected unit can be imported from a measurement file (2). If, however, no measurement file is available a standardized consumption profile can be used by selecting one of the provided defaults (3).
